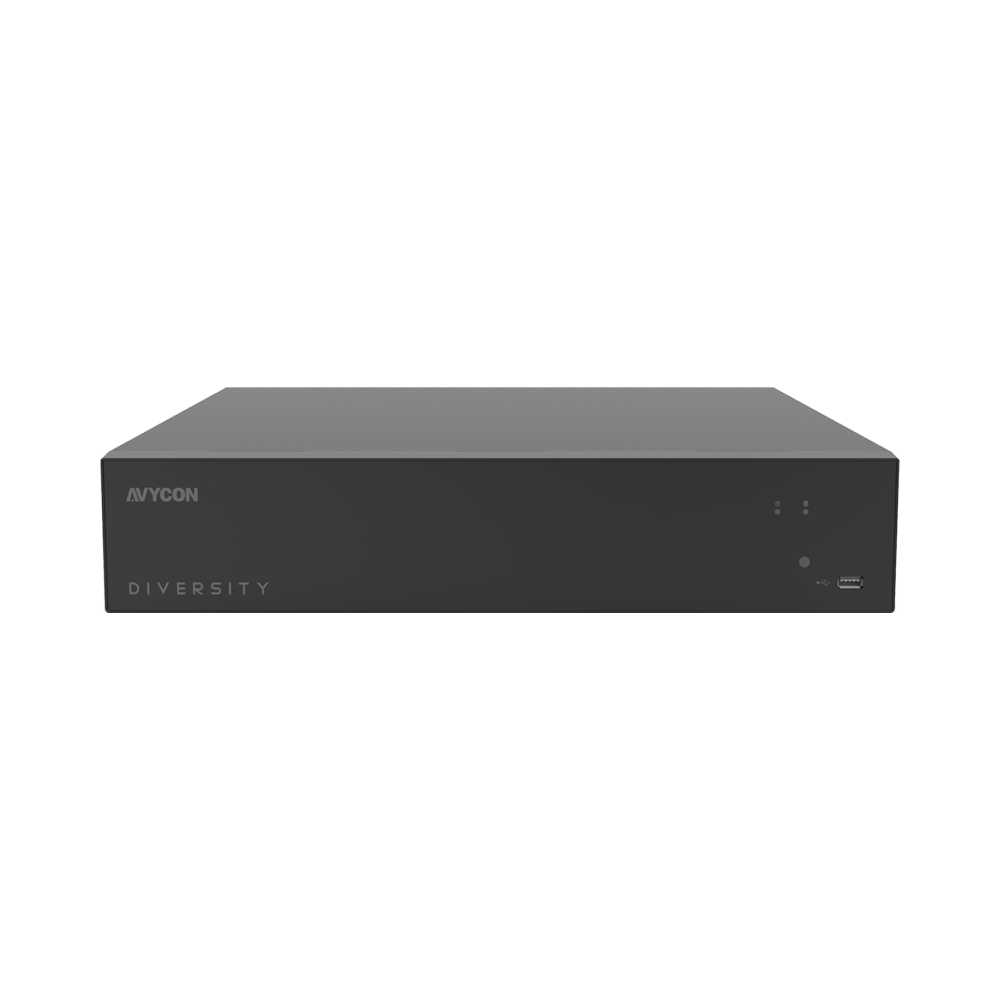

64 CH. 4K UHD NETWORK VIDEO RECORDER
· H.265+ codec decoding
· Max. 640Mbps (64CH) input bandwidth
· Up to 8MP(4K) resolution for preview and playback
· Support to install up to 8 HDDs, max total capacity of up to 20TB
· Full function network remote view via Internet (CMS, IE/Firefox/Chrome, Mac Safari)
· No limitation on adding devices to CMS, max. 128 channels preview (CMSONE)
· Support scan P2P QR code to connect NVR via Mobile app (AVY Mobile One)
· Support to save pictures/video to Dropbox storage (Dropbox)
· Support to save pictures/video to FTP server (built by user)
· 4 x HDMI output up to 8K resolution
· Support HDD S.M.A.R.T. Monitoring
· NDAA compliant
| VIDEO | |
| Video Resolution | 12MP, 8MP, 5MP, 3MP, 2MP(1080P), 1.3MP(960P), 1.0MP(720P) |
| Recording Bandwidth Inputs | 640Mbps |
| Recording Bandwidth Output | 640Mbps |
| PLAYBACK | |
| Live/Playback Compression | Audio: G.711a Video: H.264 / H.265 / H.264+ / H.265+ |
| Live/Playback Frame Rate | 4K: 240fps 4MP: 480fps 2MP: 960fps |
| Live/Playback Event | MD(Sensitivity Level 1~8) Video loss, Beep, Email, Push notification to Mobile APP |
| Playback Function | Fast forward / backward (2x, 4x, 8x,16x) Slow forward (1/2x, 1/4x, 1/8x,1/16x) |
| Playback | Max 16CH playback |
| INTERFACE | |
| RAID Type |
RAID0, RAID1, RAID5, RAID6, RAID10 |
| Fisheye | Support |
| WEB | IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above |
| Mobile Viewer | AVYCON Mobile One |
| Push Notification |
Motion Event, AI, and Abnormal |
| Analytics | Face Detection, Human & Vehicle Detection, Intrusion Detection, Tripwire Detection, Stationary Object Detection, Tripwire Count, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection, Rare Sound Detection, Loitering Detection, Region Entrance Detection, Region Exiting Detection |
| P/W Reset | Yes |

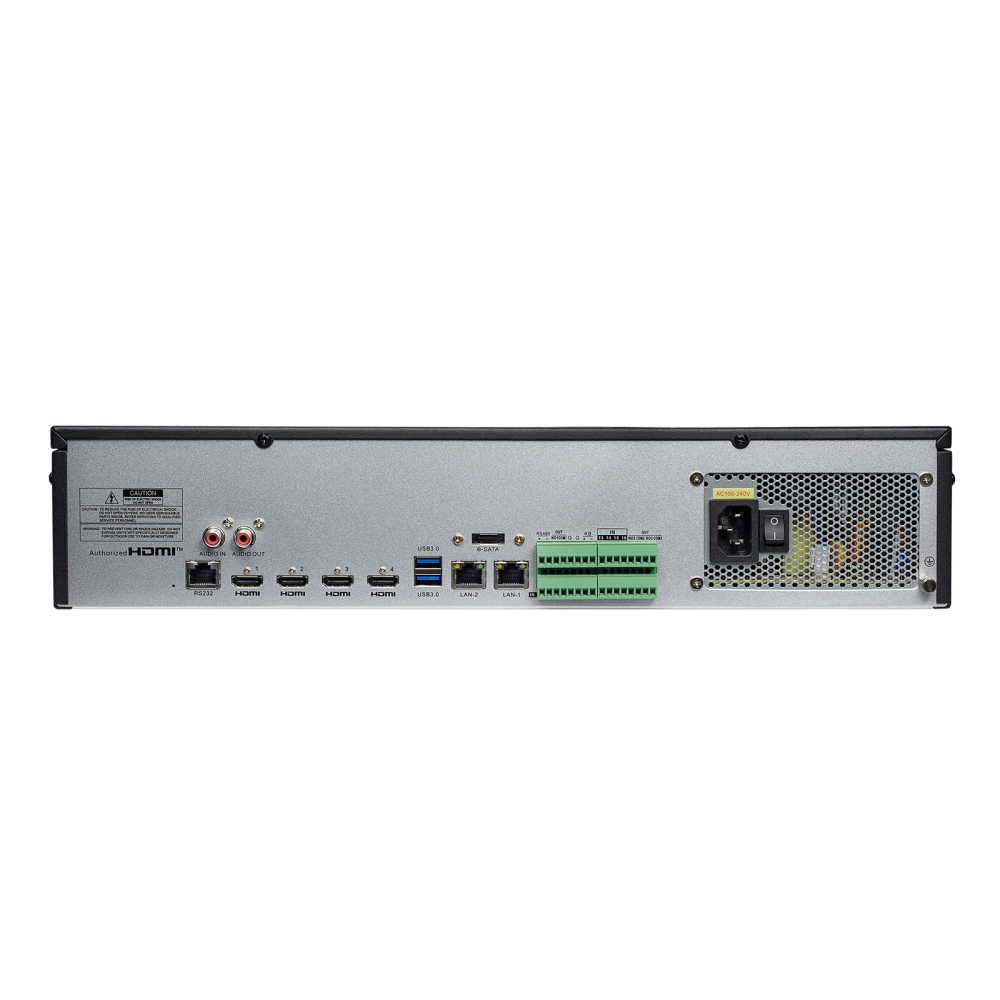

| SYSTEM | |
| HDMI | HDMI 1: Main Monitor supports up to 64ch Live view HDMI 2: SPOT Monitor supports up to 36ch Live view HDMI 3: SPOT Monitor supports up to 36ch Live view Supported Resolution (1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080, 1920x1080, 1600x1200, 1920x1200, 3840x2160/7680x4320/EDID) Async out HDMI 4: SPOT Monitor supports up to 16ch Live view Supported Resolution (1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080 /EDID) Async out Note: If the output resolution of HDMI 1 is set to 8K, the maximum output resolution of HDMI 3 and 4 will be limited to 1080P, and HDMI 2 will be disabled. |
| Ethernet |
2 RJ45 1000 Base-T |
| USB | USB2.0*1 (front) USB3.0*2 (rear) |
| Audio out | 1 |
| E-Sata |
1 |
| HDD |
8 SATA HDD, up to 20TB per Drive (Enterprise-Class) |
| Line-In | 1 |
| RS232 |
1*RJ45 |
| RS485 |
1 |
| Alarm Input/out |
16 IN / 1 OUT |
| GENERAL | |
| OSD Language | English / French / Spanish / Portuguese / German / Italian / Greek / Danish / Finnish / Russian / Hebrew / Turkish / Bulgarian / Arabic / Korean / Japanese / Thai / Hindi / Romanian / Dutch / Polish |
| Dimensions | 17.32in x 18.10in x 3.5in (440mm x 460mm x 89mm) |
| Input Voltage/Current | ATX 250W |
| Power Consumption | 8W |
| Operating Temperature | 14°F ~ 122°F (-10°C~+50°C) |
| Humidity | Less than 90%RH |
